| حالة: | جديد | ضمان: | 12 شهرا |
|---|---|---|---|
| منطقة: | 14(㎡) | لوحة الكمية: | 41 قطعة |
| ميناء: | تشينغداو الصين | تصنيف: | معدات خلع الملابس الخام |
| تدفق التغذية: | 10-13 طن/ساعة |

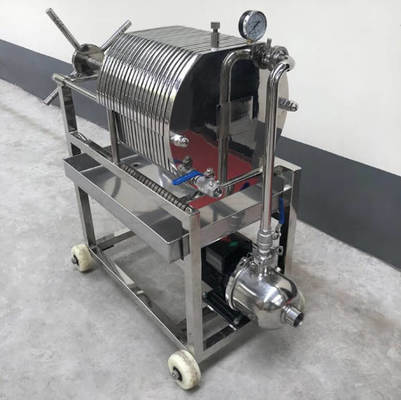

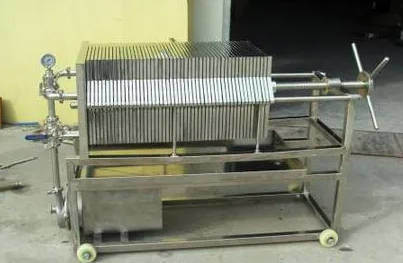

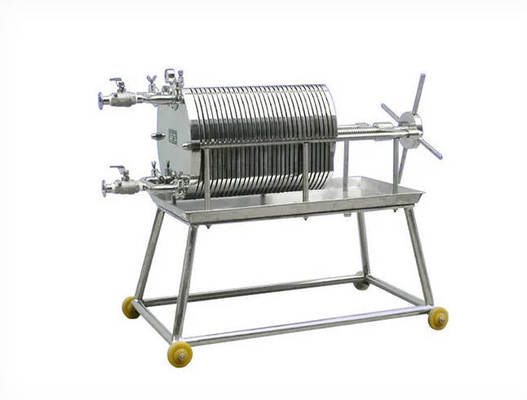

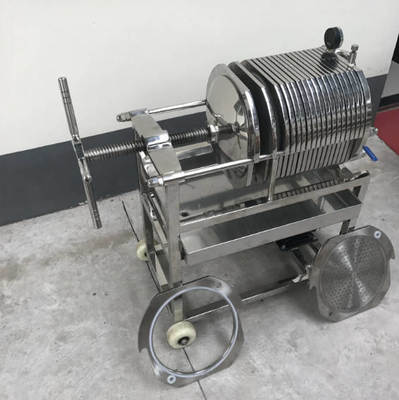

Widely used in various thicknesses Stainless Steel Filter Press For Fine Filtration
This type of filter press is suitable for various sector such as: liquid medicine, plasma, liquor(beer, wine, spirit, yellow wine, fruit wine), beverage, juice, syrup, vinegar, oil(for food or industry usage), fine chemicals, electroplating water industries.
Material: frame: S.S.-304;plate: S.S.-304(316L or PP could be optional)
Sealing ring material: white silastic. Working pressure: <0.4 MPa; Working temperature:<120℃ Major dimensions: plate thickness:13mm; Individual chamber volume: 4.8L.
Squeezing method: Screw/Manual Hydraulic(Others: Manual jack/ Automatic hydraulic etc.) Filter material: Filter paper board, Filter paper, Filter membrane, filter cloth, etc.
Precision: Cloth from 200 to 300 mesh for rough filtration, and paper or membrane from 0.22 to 0.45μm for refined filtration.
Product Parameters of Ore Dressing Equipment
Technical Data
| Model | Area(m²) | Plate Qty(piece) | Feeding Flow(T/h) | Plate Size(mm) | Dimension(mm) | |||||||||||||||||||||||||||||||
| BASJL600-14 | 14 | 41 | 10-13 | 600×600 | 1750×870×1350 | |||||||||||||||||||||||||||||||
| BASJL600-21 | 21 | 61 | 15-20 | 600×600 | 2100×870×1350 | |||||||||||||||||||||||||||||||
| BASJL600-24 | 24 | 71 | 20-25 | 600×600 | 2250×870×1350 | |||||||||||||||||||||||||||||||
| BASJL600-35 | 35 | 101 | 25-30 | 600×600 | 2800×870×1350 | |||||||||||||||||||||||||||||||
Technical data of cast
| Model | Area(m²) | Plate Qty(piece) | Feeding Flow(T/h) | Plate External Size(mm) | Power of Feeding Pump(KW) | Dimension(mm) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BASJL400-2 | 2 | 15 | 1-2 | 400×400 | 1.5 | 1250×660×1300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BASJL400-3 | 3 | 21 | 1-3 | 400×400 | 1.5 | 1350×660×1300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BASJL400-4 | 4 | 31 | 3-4 | 400×400 | 1.5 | 1550×660×1300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BASJL400-6 | 6 | 45 | 4-6 | 400×400 | 1.5 | 1750×660×1300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BASJL400-8.5 | 8.5 | 61 | 6-8 | 400×400 | 2.2 | 2100×660×1300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BASJL400-9.5 | 9.5 | 71 | 8-10 | 400×400 | 2.2 | 2300×660×1300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The pressing mode of this model is screw and manual hydraulic pump pressing, or stainless steel jacks pressing, the price is the same.
Product Display of Ore Dressing Equipment
Ore Dressing Equipment
