تفاصيل المنتج:
شروط الدفع والشحن:
|
| حالة: | جديد | ضمان: | 12 شهرا |
|---|---|---|---|
| منطقة التصفية: | 5 م 2 | حجم المعدل: | ф500mm |
| ميناء: | تشينغداو الصين | تصنيف: | معدات خلع الملابس الخام |
| الحجم الإجمالي: | 216L |
Large Filtration Area Easy Maintenance Cotton Cake Filter
Overview
Cotton cake filter is a plate and frame filter press that uses recyclable fibrous materials (such as degreased cotton cake) as the filter medium. It is mainly used for high-precision solid-liquid separation of liquids.
Design Feature
The cotton cake filter press is a kind of plate frame filter press. It is used for liquid purification and filtration. This machine has advantages of large filter area and convenient operation. It adopts round plates, which has better performance. Plate material can be aluminum alloy or polypropylene to suit different filter material.
Application
It's mainly used in the following fields: fermentation broth, enzymes, RAN, gelatin, food, beverage and other fields that in need of higher filter precision.
Product Parameters of Ore Dressing Equipment
Technical Data Of Cotton Cake Filter Press
| Filter area(m2) | Rate size(mm) | Plate Thickness(mm) | Filtration pressure (kg/cm2) |
Plate NO.(pcs) | Max Feeding Pressure(kg/cm2) | Total Volume(L) | Dimensions L*W*H(mm) | Flow(L/Min) | Motor Power(KW) | Rotating Speed(r/min) | Squeezing Pressure(Mpa) | Max Travel Limit of Closing Plate(mm) |
| 8 | Ф500 | 50 | ≤2 | 22 | 3 | 216 | 2630*1150*770 | 87 | 1.1 | 1460 | 12 | 350 |
| 5 | Ф400 | 50 | ≤2 | 22 | 3 | 138 | 2630*1050*670 | 55 | 1.1 | 1460 | 12 | 350 |

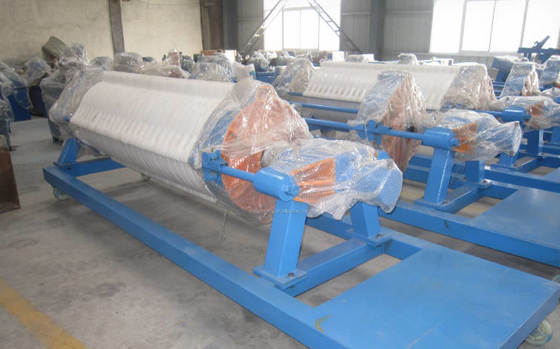

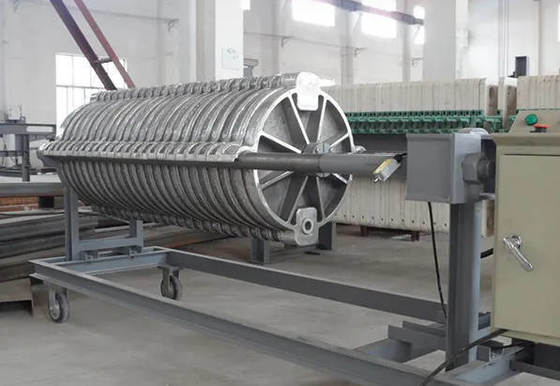

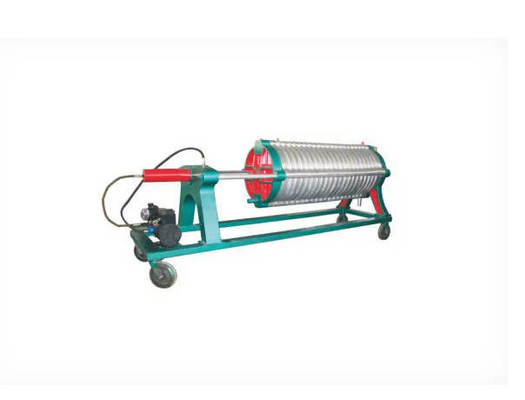

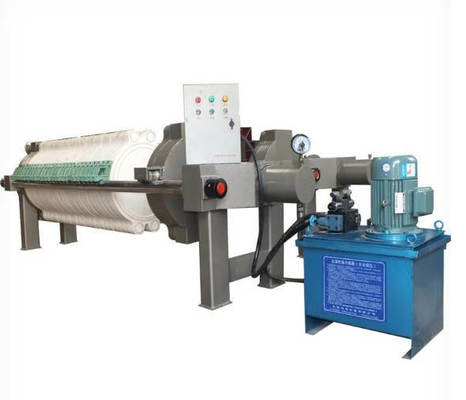

Product Display of Ore Dressing Equipment
Ore Dressing Equipment
