تفاصيل المنتج:
شروط الدفع والشحن:
|
| حالة: | جديد | ضمان: | 12 شهرا |
|---|---|---|---|
| عدد الغرف: | 10 | مواصفات اللوحة: | 1100x1100mm |
| ميناء: | تشينغداو الصين | تصنيف: | معدات خلع الملابس الخام |
| منطقة: | 20 م 2 | ||
| إبراز: | small fixed hydraulic cylinder,large mobile hydraulic cylinder,ore dressing hydraulic cylinder,large mobile hydraulic cylinder,ore dressing hydraulic cylinder |
||
Small Fixed Hydraulic Cylinder Series and Large Mobile Hydraulic Cylinder Series
The Cloth-Traveling Automatic Filter Press -our proprietary sludge dewatering technology- utilizes thin-layer dewatering principles to achieve high solids content. Without chemical additives (e.g, lime or fly ash), it reduces sludge moisture from >99% to <60% in a single step. The resulting thin, highly air-permeable filter cakes readily meet pretreatment requirements for downstream processes including drying, incineration, landfill, and composting.
This system can achieve simultaneous rapid cake discharge and cloth washing via lifting reciprocating
motion of filter cloth. Focused on cloud platform and big data technology, it can provide strong guarantee for machine operation and the function of fault advance warning, which greatly improving its stability and reliability.
Featuring a simplified process and compact footprint, this system enables flexible retrofitting of existing facilities while aligning with industry evolution to address diverse application requirements.
Product Parameters of Ore Dressing Equipment
Small Fixed Hydraulic Cylinder Series
Models |
Number of Chambers |
Plate Specifications (mm) |
Area(m2) |
Chamber Volume (m3) |
Installed Power (KW) |
Dimensions(mm) | Net Weight(t) |
||||||||||||||||
| L | W | H | |||||||||||||||||||||
| XZA-1110 | 10 | 1100X1100 | 20 | 0.35 | 16.5 | 5933 | 2000 | 2620 | 12 | ||||||||||||||
| XZA-1116 | 16 | 1100X1100 | 32 | 0.56 | 16.5 | 6797 | 2000 | 2620 | 16 | ||||||||||||||
| XZA-1120 | 20 | 1100X1100 | 40 | 0.7 | 16.5 | 7373 | 2000 | 2620 | 17 | ||||||||||||||
| XZA-1126 | 26 | 1100X1100 | 52 | 0.91 | 16.5 | 8237 | 2000 | 2620 | 18 | ||||||||||||||
| XZA-1130 | 30 | 1100X1100 | 60 | 1.05 | 16.5 | 8813 | 2000 | 2620 | 19 | ||||||||||||||
Large Mobile Hydraulic Cylinder Series
Models |
Number of Chambers |
Plate Specifications(mm) | Area(m2) |
Chamber Volume (m3) |
InstalledPower (KW) |
Dimensions(mm) | Net Weight(t) |
|||||||||||||||
| L | W | H | ||||||||||||||||||||
| XZB-1536 36 1500X1500 | 36 | 1500X1500 | 131.04 | 2.293 | 17.2 | 8377 | 2600 | 2650 | 36 | |||||||||||||
| XZB-1540 40 1500X1500 | 40 | 1500X1500 | 145.6 | 2.548 | 17.2 | 8953 | 2600 | 2650 | 37 | |||||||||||||
| XZB-1546 46 1500X1500 | 46 | 1500X1500 | 167.44 | 2.93 | 17.2 | 9817 | 2600 | 2650 | 39 | |||||||||||||
| XZB-1550 50 1500X1500 | 50 | 1500X1500 | 182 | 3.185 | 17.2 | 10393 | 2600 | 2650 | 40 | |||||||||||||
| XZB-1556 | 56 | 1500X1500 | 203.84 | 3.567 | 17.2 | 11257 | 2600 | 2650 | 42 | |||||||||||||
| XZB-1560 | 60 | 1500X1500 | 218.4 | 3.822 | 17.2 | 11833 | 2600 | 2650 | 44 |
|||||||||||||

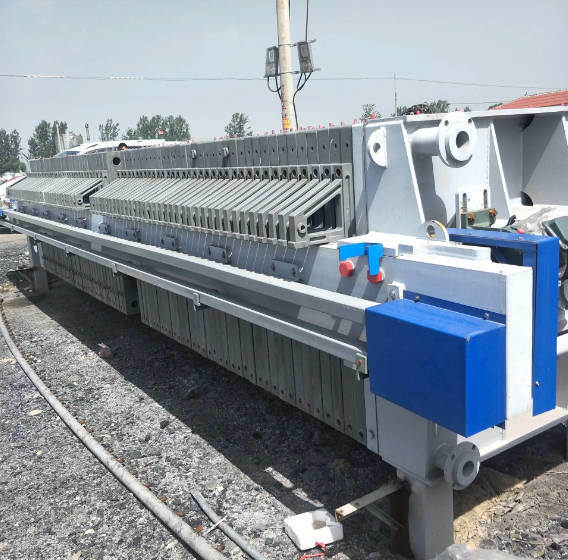

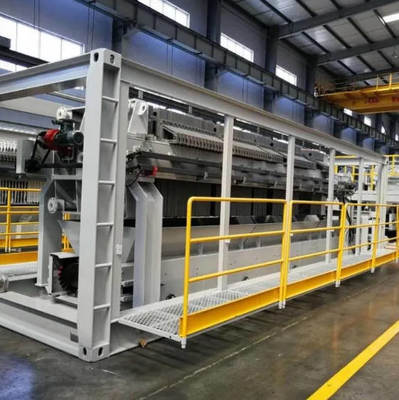

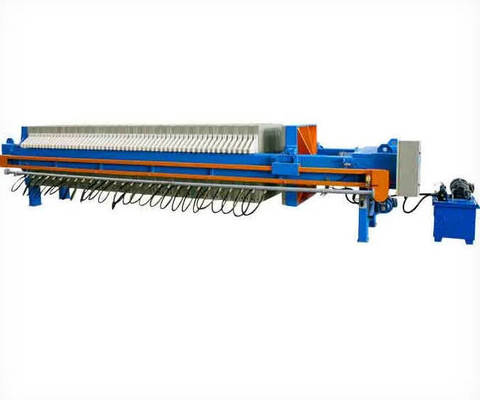

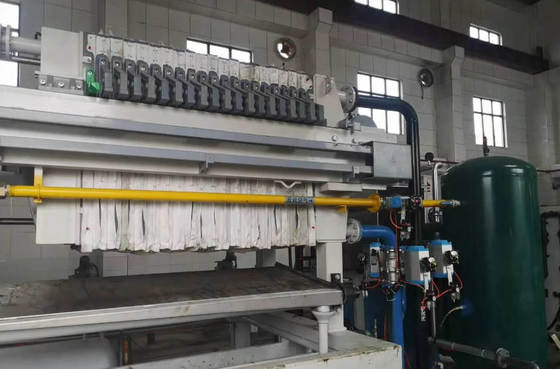

Product Display of Ore Dressing Equipment
Ore Dressing Equipment
